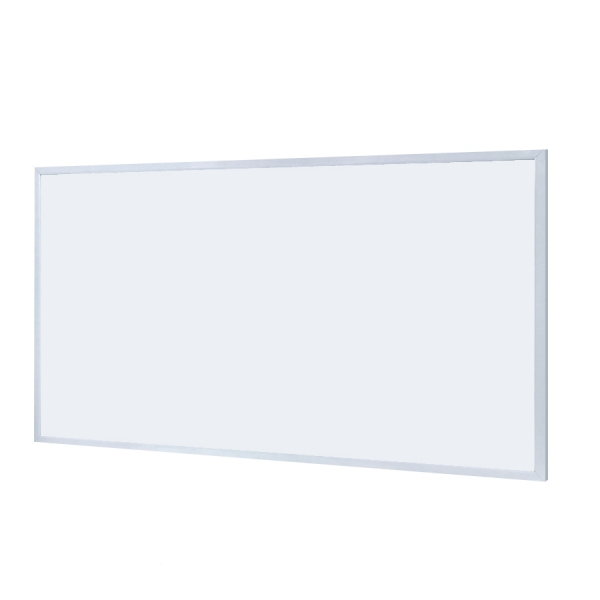

Panel 1200x600mm

Panel 1200x600mm
Advantages:
● Superior Aluminum Alloy materials. Stylish everlasting color aluminum frame with advanced anodized and oxidation treatment. Advanced designing makes the ceiling lighting more elegant.
● Different sizes of LED panel for your options. Diversity in shape (square, rectangle)
● Easy to install. Ideal to be built into system ceilings, offices, and for the use as a hanging fixture.
● Direct replacement for T8 and T5 fixtures.
● Mitsubishi LGP high efficiency, maximum uniformity.
● 160° wide beam angle
● Innovated structure heating design.
● EVA protection to protect the light guiding plate from reshaping.
● Constant current driver with a power factor of 0.97;
● Lock cable DC plug.
● LED panel lights are CE , Rohs , UL, TUV, PSE, EMC, and FCC certified.

Specification
ModelES-1200600P80
Size1200x600mm
Power80W
Installation WayEmbed， Fixture，lifting
Input VoltageAC85-265V,50/60HZ
DimmableOptional
Color Temperature2700K-7000K
Parameter
Luminous Flux>6400
Angle160º
CRI>80
LED TypeSMD 2835
LED Qty408PCS
DriverExternal
POWER FACTOR>0.95
MaterialAluminum Alloy+PC
CertificateCE、ROHS、UL、CE、FCC、VDE、TUV、CQC
Life-Span>50000Hours
Real Size1195*595mm
