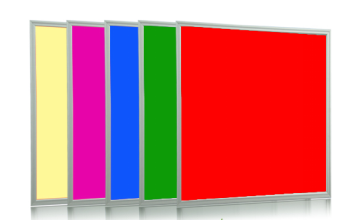

RGB Panel 620x620mm M

RGB Panel 620x620mm M

Advantages
• Superior Aluminum Alloy materials. Stylish everlasting color aluminum frame with advanced anodized and oxidation treatment. Advanced designing makes the ceiling lighting more elegant.
• Different sizes of LED light panel for your options. Diversity in shape (square, rectangle)
• Easy to install. Ideal to be built into system ceilings, offices, and can be used as a hanging fixture.
• LED flat ceiling panel light direct replace T8 and T5 fixtures.
• EVER SPRING LED panel light is with high efficiency, maximum uniformity by Mitsubishi Light guide plate.
• The beam angle of led panel light is120°.

• RGB dimmable led panel light is muliti-colors change and compatible with DMX connection .
• Innovated structure heating design.
• EVA foam protects the light guide plate from reshaping.
• Lock cable DC plug for RGB led panel light.
• LED panel lights are CE, ROHS, FCC, TUV, GS, CB, SAA, PSE and EMC certified.

Model No

ES-S620P38

Power Consumption

38 W

LED Qty(pcs)

174pcs

LED Type

SMD 5050

Color

Multi Colors

Product Size

620x620x10mm

Beam Angle (degree)

>120°

       Output Voltage

 DC12-24V

Input Voltage

AC 85V - 285V

Frequency Range (Hz)

50 - 60Hz

Working Environment

 Indoor

Material of Body

Aluminum alloy frame and PC cover

IP Rating

IP44

Operating Temperature

-25°~70°

Dimmable

RGB Dimming

Life span

50,000 hours

Warranty

3 Years



RGB LED Panel Light
