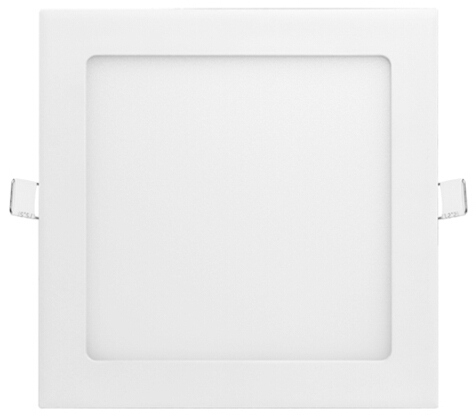

Retrofit Embeded Square LED Panel lights

Retrofit Embeded Square LED Panel lights
Advantages:
● Aluminum-alloy body design with good heat dissipation.
● Reliable Application: High quality SMD chip, less SDCM; High CRI, long lifespan, low light decay and stability.
● Durable Craftsmanship: Sprayed ring, excellent color conformity, scratch resistance and rust proof.
● Easy to install. Ideal to be built into system ceilings, offices, and homes.
● The lock design have Lock and Unlock remarks and easy for installation.
● External driver with good heat dissipation, keep a long lifespan.
●Wide-voltage of AC 110-240V, high power factor above 0.9, isolated driver with consistent current.
● EMC fully according with the international standard, no interference with the power grid.
● LED panel lights are CE , Rohs , UL, TUV, PSE, EMC, and FCC certified.

Specification
ModelES-S160*/S220*/S240*
Power10W/16W/24W
Install Hole140x140mm /180x180mm/220x220mm
Input VoltageAC85-265V,50/60HZ
DimmableOptional
Color Temperature2700K-7000K
Parameter
Luminous Flux>810/1280/1920
Angle100º
CRI>80
LED TypeSMD 2835
LED Qty52PCS/80PCS/120PCS
DriverExternal
POWER FACTOR>0.95
MaterialAluminum Alloy+PC
AuthenticationCE、ROHS、UL、CE、FCC、VDE、TUV、CQC
Life-Span>50000Hours
Size160*160mm/220*220mm/240x240mm
