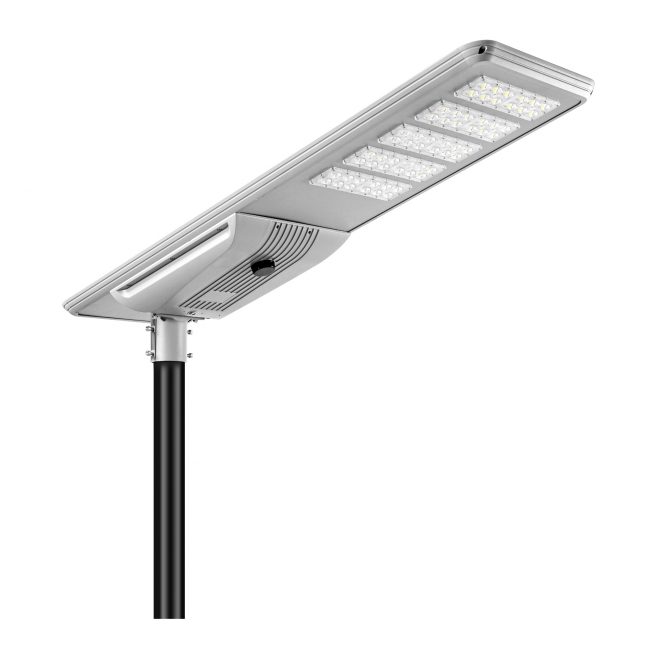

Solar LED street light

Solar LED street light

1.0 electricity fee no wiring required work continuously for 3-5 rainy and cloudy days

2.ES-LKH series is All in One solar lighting system designed for cost-effective lighting for small to medium spaces. Reliability and easy installation, All key components are integrated within the solar panel and light head.

3.The design of the detachable battery compartment reduces maintenance difficulty and cost, which is conducive to the sustainable use of the product.

4.It uses an intelligent MPPT controller to maximize solar power capture through a powerful and compact Lithium-Ion battery system, and a motion sensor to adjust light brightness and preserve battery power.

5.Removable battery compartment for easy battery relacement, reducing maintenance time and maintenance costs.

6.High brightness Lumileds Philips 3030 LED chips up to 200lm/w ,super brightness ,reduce light decay.

Model

30W

40W

60W

80W

100W

120W

Monocrystalline solar panel

18V/50W

18V/60W

 18V/80W

18V/105W

18V/130W

18V/150W

Solar panel size(mm)

680*398

785*398

1025*398

1298*398

1510*398

1915*398

 LiFePO4 battery

3.2V,72AH

3.2V,100AH

12.8V 30AH

12.8V,45AH

 12.8V,60AH

 12.8V,75AH

Philips 3030 LED chip

 96PCS

144PCS

 192PCS

  240PCS

 288PCS

 336PCS

Product size (mm)

773*408*135

878*408*135

1118*408*135

1388*408*135

1603*408*135

2008*408*135

Light efficiency

210LM/W

210LM/W

210LM/W

210LM/W

210LM/W

210LM/W

Controller

MPPT

MPPT

MPPT

MPPT

MPPT

MPPT

Lighting mode

Infrared sensing+segmented time control+intelligent controll

Recommended installation height

5~7 M

6~8 M

8~10 M

 10~12 M

12~15 M

  14~16 M
