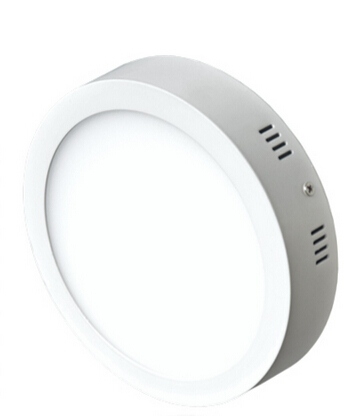

Retrofit Exposed Round LED Panel lights

Retrofit Exposed Round LED Panel lights
Advantages:
● Aluminum-alloy body design with good heat dissipation.
● Reliable Application: High quality SMD chip, less SDCM; High CRI, long lifespan, low light decay and stability.
● Durable Craftsmanship: Sprayed ring, excellent color conformity, scratch resistance and rust proof.
● Easy to install. Ideal to be built into system ceilings, offices, and homes.
● The lock design have Lock and Unlock remarks and easy for installation.
● External driver with good heat dissipation, keep a long lifespan.
●Wide-voltage of AC 110-240V, high power factor above 0.9, isolated driver with consistent current.
● EMC fully according with the international standard, no interference with the power grid.
● LED panel lights are CE , Rohs , UL, TUV, PSE, EMC, and FCC certified.

Specification
ModelES-S170P12ES-S220P18ES-S300P24
Power12W18W24W
Input VoltageAC85-265V,
50/60HZ		AC85-265V,
50/60HZ		AC85-265V,
50/60HZ
DimmableOptionalOptionalOptional
Color Temperature2700K-7000K2700K-7000K2700K-7000K
Parameter
Luminous Flux>970>1450>1950
Angle160º160º160º
CRI>80>80>80
LED TypeSMD 2835SMD 2835SMD 2835
LED Qty60PCS90PCS120PCS
DriverInternalInternalInternal
POWER FACTOR>0.95>0.95>0.95
MaterialAluminum Alloy+PCAluminum Alloy+PCAluminum Alloy+PC
AttestationCE、ROHS、UL、CE、FCC、VDE、TUV、CQCCE、ROHS、UL、CE、FCC、VDE、TUV、CQCCE、ROHS、UL、CE、FCC、VDE、TUV、CQC
Life-Span>50000Hours>50000Hours>50000Hours
SizeФ170*40mm Ф220*40mm Ф300*40mm
