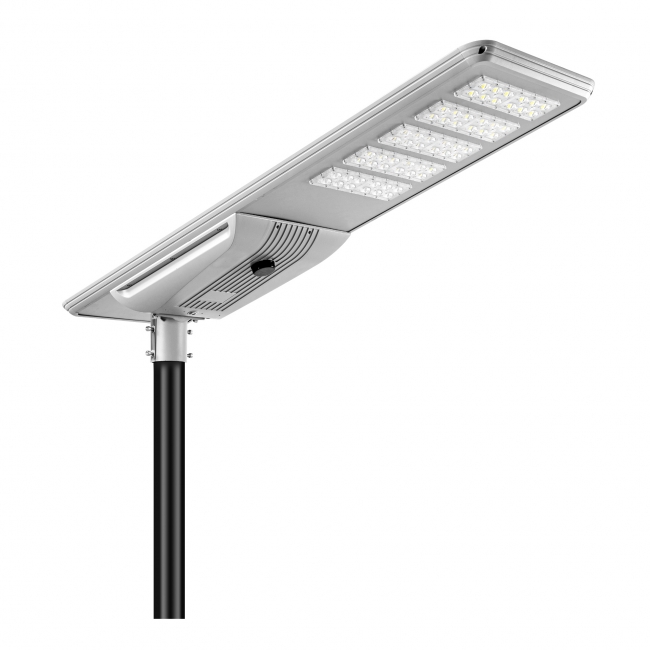

Hybrid(Solar&AC) LED street light

Hybrid(Solar&AC) LED street light

1.This is a kind of hybrid LED street light with storage, to be powered by Solar and switch to power incase weather is too cloudy  to get solar power.

2.ES-LKH hybrid series is All in One solar lighting system designed for cost-effective lighting for small to medium spaces. Reliability and easy installation, All key components are integrated within the solar panel and light head.

3.The design of the detachable battery compartment reduces maintenance difficulty and cost, which is conducive to the sustainable use of the product.

4.It uses an intelligent MPPT controller to maximize solar power capture through a powerful and compact Lithium-Ion battery system, and a motion sensor to adjust light brightness and preserve battery power.

5.Removable battery compartment for easy battery relacement, reducing maintenance time and maintenance costs.

6.High brightness Lumileds Philips 3030 LED chips up to 200lm/w ,super brightness ,reduce light decay.

Model

30W

40W

60W

80W

100W

120W

Input VoltageAC85-265VAC85-265VAC85-265VAC85-265VAC85-265VAC85-265V

Monocrystalline solar panel

18V/50W

18V/60W

 18V/80W

18V/105W

18V/130W

18V/150W

Solar panel size(mm)

680*398

785*398

1025*398

1298*398

1510*398

1510*398

 LiFePO4 battery

12.8V,15AH

12.8V,30AH

12.8V 30AH

25.6V,30AH

 25.6V,30AH

 25.6V,45AH

Philips 3030 LED chip

 96PCS

144PCS

 192PCS

  240PCS

 288PCS

 288PCS

Product size (mm)

828*408*150

933*408*150

1173*408*150

1388*408*150

1603*408*150

1603*408*150

Light efficiency

200LM/W

200LM/W

200LM/W

200LM/W

200LM/W

200LM/W

Controller

MPPT

MPPT

MPPT

MPPT

MPPT

MPPT

Lighting mode

Infrared sensing+segmented time control+intelligent controll

Recommended installation height

5~7 M

6~8 M

8~10 M

 10~12 M

12~15 M

  14~16 M
