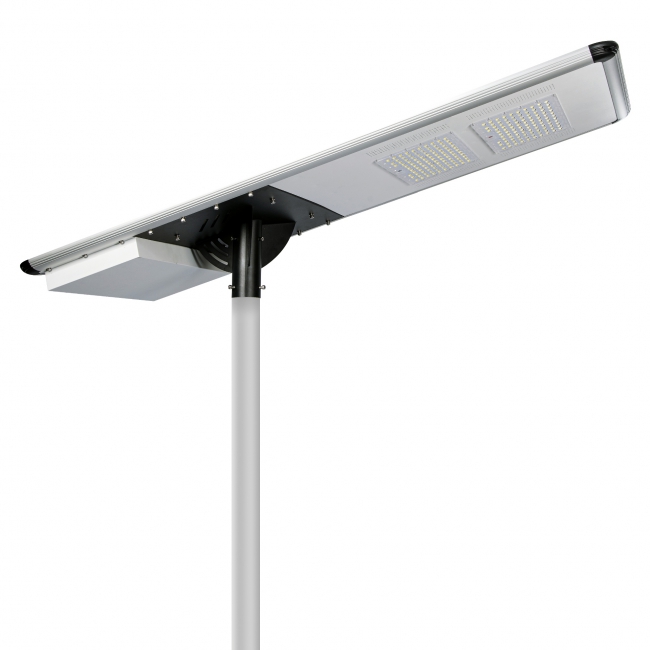

Solar LED street Light

Solar LED street Light

1.0 electricity fee no wiring required work continuously for 3-5 rainy and cloudy days

2.EVER SPRING LKA series is All in One solar lighting system designed for cost-effective lighting for small to medium spaces. Reliability and easy installation, All key components are integrated within the solar panel and light head.

3.The design of the detachable battery compartment reduces maintenance difficulty and cost, which is conducive to the sustainable use of the product.

4.It uses an intelligent MPPT controller to maximize solar power capture through a powerful and compact Lithium-Ion battery system, and a motion sensor to adjust light brightness and preserve battery power.

5.Removable battery compartment for easy battery relacement, reducing maintenance time and maintenance costs.

6.High brightness Lumileds Philips 3030 LED chips up to 200lm/w ,super brightness ,reduce light decay.

Model LKA-80WLKA-100WLKA-120WLKA-150W
Solar Panel18V/150W Mono36V/180W Mono36V/240W Mono36V/300W Mono
Solar Panel Size1130*679*4mm1370*679*4mm1790*679*4mm1940*770*4mm
Battery
 12.8V 60AH25.6V 45AH25.6V 60AH25.6V 75AH
LEDSMD5050,105PCSSMD5050,105PCSSMD5050,210PCSSMD5050,210PCS
Product Size1135*686*280mm1375*686*280mm1795*686*280mm1945*778*280mm
Optional Lighting ModeIntelligent control+Segmented time control
MaterialDie casting Aluminum + PMMA
Efficacy200LM/W
Solar Panel                 Conversion Efficiency23.8%
Luminous Flux16000LM20000LM2400LM30000LM
ControllerMPPT
Light angle75*155°/transmittance: > 95%
Temperature0-55℃
Discharge time3-5 rainy days
Installation Height Recommended6-10m10-12m12-14m12-18m
